Sonnenschein Solar

The compact alternative for smaller solar applications

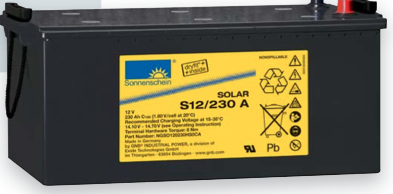

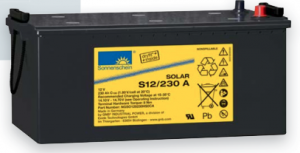

Screen Shot 2015-09-28 at 3.36.37 pmSonnenschein SOLAR batteries are specially designed for small to medium performance requirements in leisure and consumer applications. The advantages of the maintenance free VRLA-batteries are enhanced by the worldwide excel- lent reputation and technical image of the dryfit technology.

Your Benefits:

  • Excellent cycling performance – 800 cycles at 60% Depth of Discharge C10 (at 20 °C)
  • dryfit Gel – VRLA technology
  • Lowest energy consumption – saving costs
  • Robust design – resilient in harsh conditions
  • Proof against deep discharge – greater long energy delivery
  • Completely recyclable – low CO2 footprint

Specifications:

  • Nominal capacity 6.60 – 230 Ah C100 (20 °C)
  • Long shelf life up to 2 years at 20 °C without recharge due to the very low self discharge rate
  • Designed in accordance with IEC 61427 and IEC 60896-21/22
  • Manufactured in Europe in our ISO 9001 certified production plants
  • Trouble-free transport of operational blocks, no restrictions for rail, road, sea and air transportation (IATA, DGR, clause A67) > Approval: UL (Underwriter Laboratories)

Sonnenschein Solar Block

Safe power supply for medium performance

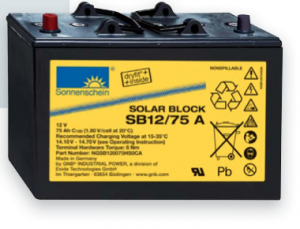

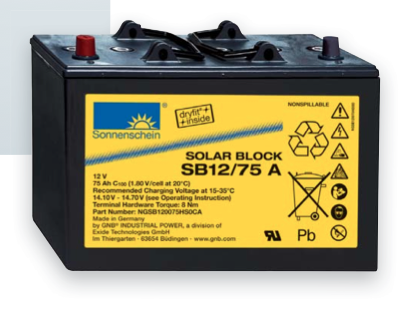

Screen Shot 2015-09-28 at 3.36.42 pmThe Sonnenschein SOLAR BLOCK battery range is very powerful and reliable in rough application conditions. This range is the ideal energy source for medium industrial solar systems, holiday and weekend houses, wind powerstations, as well as for other safety equipment power supplies.

Your Benefits:

  • Excellent cycling performance – 1200 cycles at 60% Depth of Discharge C10 (at 20 °C)
  • dryfit Gel – VRLA technology
  • Lowest energy consumption – saving costs
  • Robust design – resilient in harsh conditions
  • Proof against deep discharge – greater long-term energy delivery
  • Completely recyclable – low CO2 footprint

Specifications:

  • Nominal capacity 60.0 – 330 Ah C100 (20 °C)
  • Long shelf life up to 2 years at 20 °C without recharge due to the very low self discharge rate
  • Designed in accordance with IEC 61427 and IEC 60896-21/22
  • Manufactured in Europe in our ISO 9001 certified production plants
  • Trouble-free transport of operational blocks, no restrictions for rail, road, sea and air transportation (IATA, DGR, clause A67) > Approval: UL (Underwriter Laboratories)



 Sonnenschein A600 SOLAR

Unmatched dryfit Gel technology for renewable energy storage

Screen Shot 2015-09-28 at 3.36.46 pmSonnenschein A600 SOLAR is a premium range, developed specifically for applications where cycling is required. It has extraordinary energy-saving features in addition to robust reliability, proven for decades in many installations worldwide.

Your Benefits:

  • Exceptional cycling performance – 3000+ cycles* at 60% Depth of Discharge C10
  • dryfit Gel – VRLA technology
  • Lowest energy consumption – saving costs
  • Strong tubular plate technology – for longer life in the toughest conditions
  • Proof against deep discharge – greater long-term energy delivery
  • Horizontal mounting possible – easy installation and maintenance
  • Completely recyclable – low CO2 footprint

Specifications:

  • Nominal capacity 294 – 3919 Ah C120 (20°C)
  • Cycling performance at 20 °C (with IU charging): 2400 cycles at 60 % Depth of Discharge (C10) at 20 °C For enhanced performance and for systems ≥ 48 V we recommend IUI charging, to reach 3000+ cycles at 20 °C
  • Designed in accordance with IEC 61427 and IEC 60896-21/22
  • Long shelf life up to 2 years at 20 °C without recharge due to the very low self discharge rate
  • Also available as flame-retardant version on request (V0)
  • Manufactured in Europe in our ISO 9001 certified production plants
  • Trouble-free transport of operational cells, no restrictions for rail, road, sea and air transportation (IATA, DGR, clause A67)
  • Approval: UL (Underwriter Laboratories)



Click Here to view and download the Sonnenschein Solar brochure
